| Place of Origin: | China |
|---|---|
| Brand Name: | Tengzhuo |
| Certification: | CE Own patent |
| Model Number: | WFM001 |
| Minimum Order Quantity: | One set |
| Packaging Details: | film pack with wooden case |
| Delivery Time: | 30-40 working day |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10 pcs per month |
| Product Name: | Automatic Filling Machine | Usage: | Filling Beverage |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Filling Speed: | Customization |
| Filling Range: | 10-40 Cans/minute | Number Of Filling Heads: | 24 Heads |
| Filling Capacity: | 100~5000 Ml | Suitable For: | Coffee Powder Sauce Powder |
| Packing Material: | Wood |

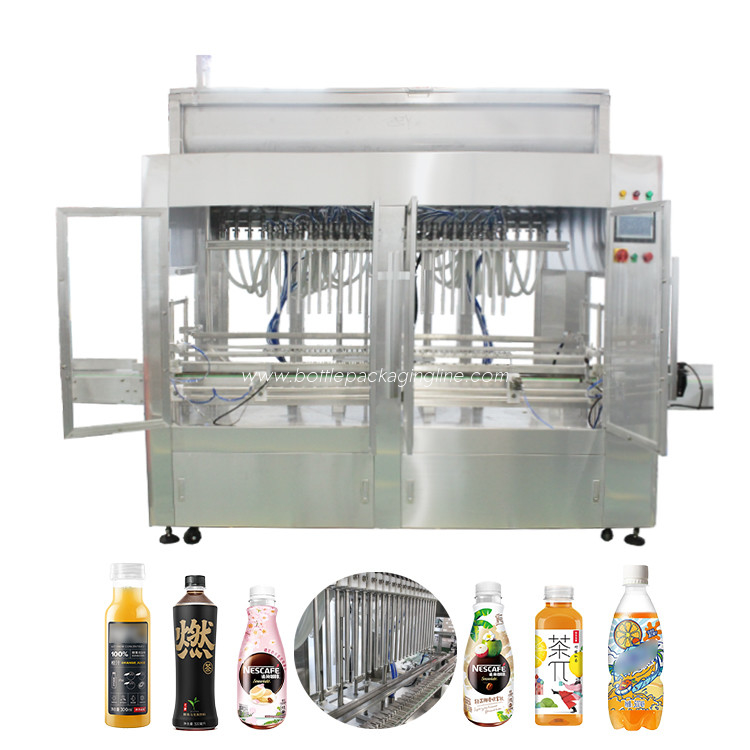

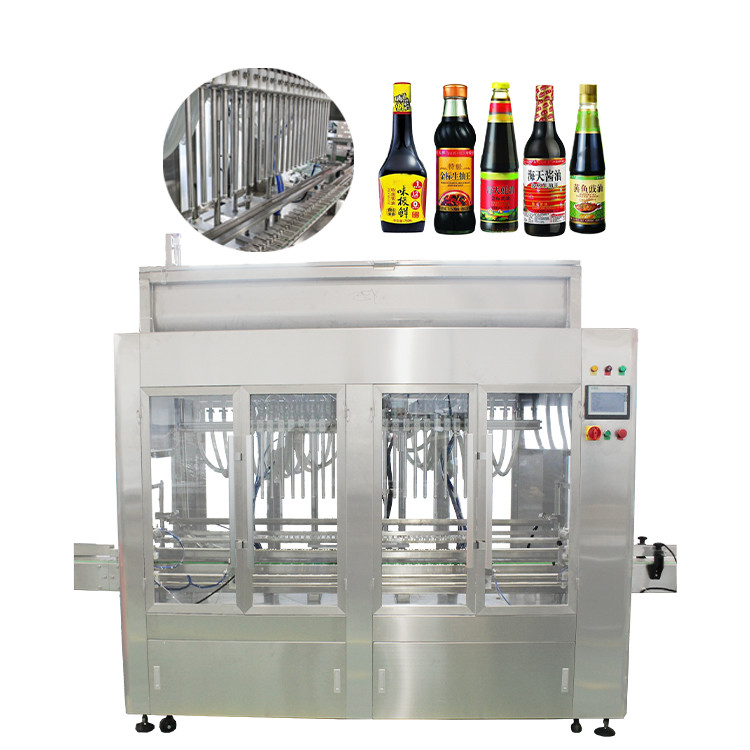

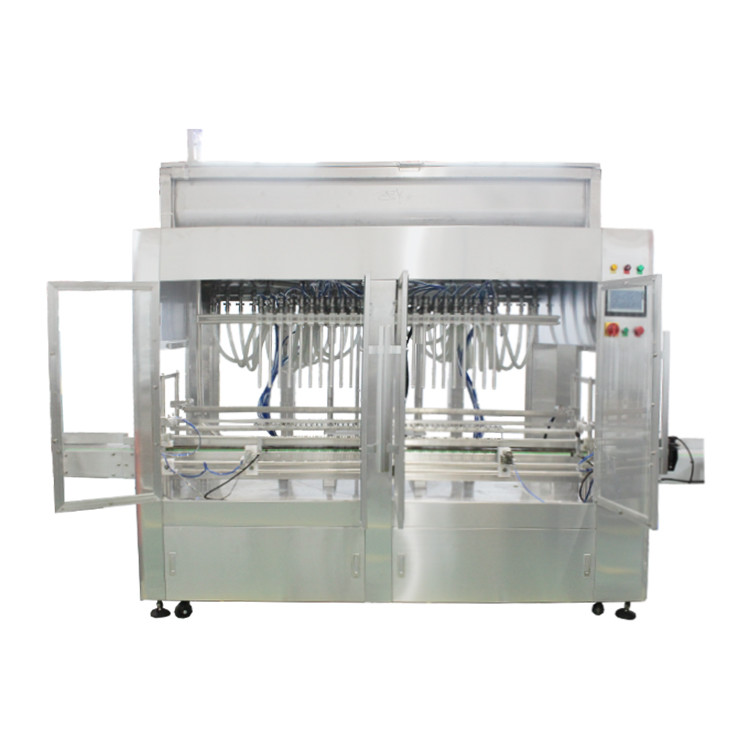

Automatic servo filling machine adopts servo control filling capacity, touch screen control, accurate accuracy, easy adjustment,
one-button cleaning function, easy disassembly and assembly.
The main electrical components are all international brands, PLC and touch screen human-machine interface,
suitable for filling Contains products with various viscosities from liquids to creams,
suitable for various industries such as daily chemicals, medicine, food, pesticides, etc.
Technical Parameters:
Number of filling heads: 4 6 8 10 12 (customized according to customer production requirements)
Filling capacity: 100～5000ml (customized according to customer requirements)
Filling form: servo filling
Theoretical filling speed: 10-50 bottles/minute
Filling accuracy: 1%
Conveying speed: 5-15 meters/minute
Belt width: 82 (mm)
Conveyor belt: 3 meters steel chain plate type
Conveyor belt height from the ground: 800±25 (mm)
Machine power: 5KW/220V AC single phase

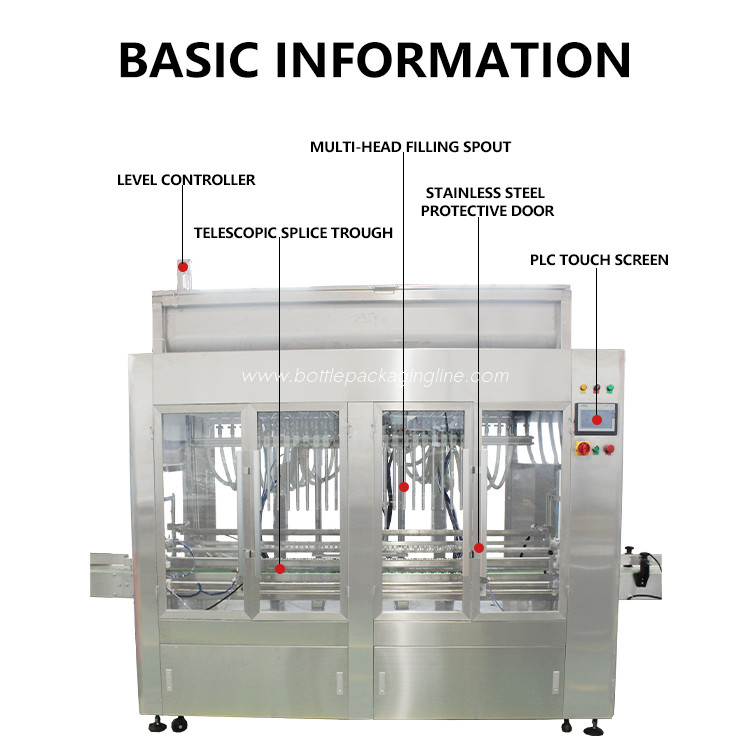

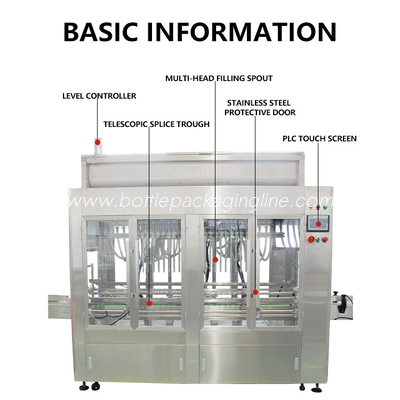

Program control: International brand PLC with touch screen human-machine interface
Gas source: 0.5-0.8MPa
